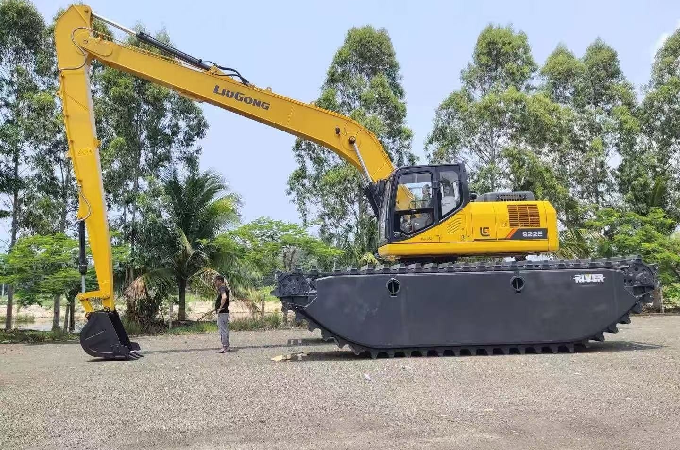

The amphibious excavator floater has good adaptability to working conditions, can drive on mountains, muddy and snowy roads, and can also adapt to water environment (rivers, lakes, shallow sea), realize seamless switching, and is suitable for emergency rescue, tourism exploration, water area operation and other scenes.

FEATURES

The amphibious excavator chassis has good adaptability to working conditions, can drive on  mountains, muddy and snowy roads, and can also adapt to water environment (rivers, lakes, shallow sea),realize seamless switching, and is suitable for emergency rescue, tourism exploration, water area operation and other scenes.

SPECIFICATIONS
Base
Machine Weight Capacity 30,500 kg
Top (Deck) MS Plate Thickness 4 mm
Sidings MS Plate Thickness 6 mm
Partitions thickness 5 mm
Top floor thickness 5 mm
Bottom MS Plate Thickness 6 mm
I-Beam, schedule 100 mm
I-beam size 4.5x8 in.
1-beam thickness 8 mm
C-Channel, schedule 50-180 mm
C-channel size 4.5*7 in.
C-channel thickness 7 mm
Angle Bar, schedule 40 mm
Angle bar size 2x6 in.
Angle bar thickness 3 mm
