It harnesses the mechanical, electrical and hydraulic systems to work in perfect harmony for efficiency, precision and control. When the working load increases,engine power and hydraulic pump flow respond to meet the demands of the job.

FEATURES
POWER WITHOUT COMPROMISE

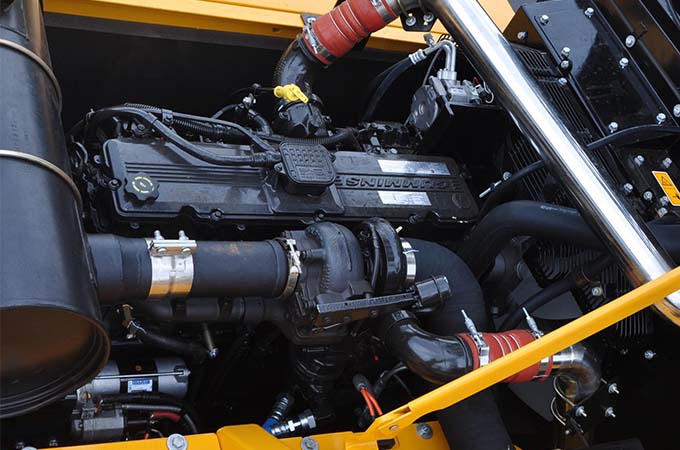

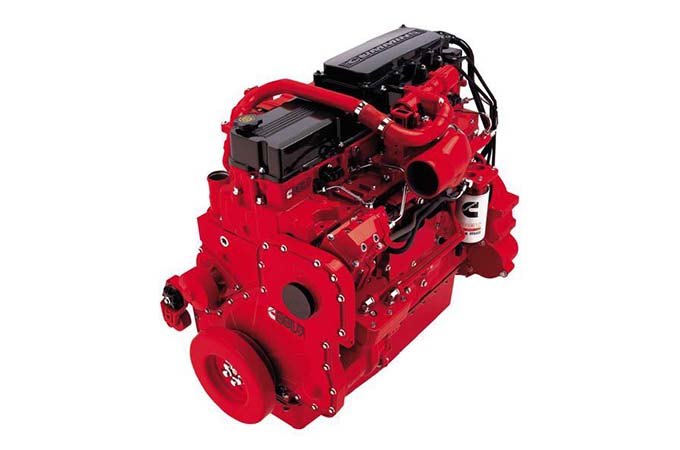

The 939E is powered by the latest Cummins QSL9 engine with a rated net power of 202 kW (275 hp) @ 2,100 rpm in compliance with EU Stage IIIA emission standards. The compact QSL9 delivers unmatched and dependable power in its class yet it produces virtually zero emissions. The engine utilizes turbo charger and air-to-air intercooler along with electronic engine controls to optimize machine performance. It is powerful. It is responsive. It tackles the toughest jobs without being thirsty for fuel, but above all, it is a joy to operate.

INTELLIGENT POWER CONTROL

Tough, repetitive tasks like breaking and loading can lead to operator fatigue and reduced productivity. We give operators total control keeping them fresh and alert with a light, responsive hydraulic control joystick. This smart technology gives effortless control of the hydraulics ensuring that the operator moves the maximum amount of material with the minimum of effort.

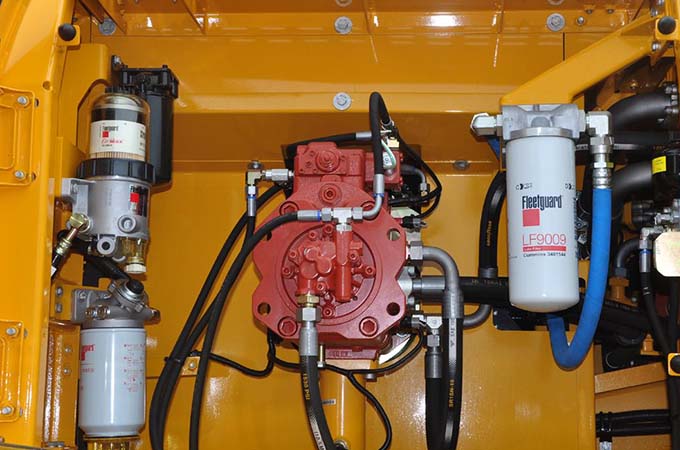

ADVANCED HYDRAULIC SYSTEM

LiuGong’s advanced hydraulic system, regenerates oil in the cylinders more efficiently reducing heat, increasing fuel efficiency and improving cycle times. The hydraulic system is highly effective in delivering power and precise control to where the operator really needs it, making even the toughest job simple.

Smart and effective design makes service and maintenance fast and simple. That is good news for operators who work in some of the toughest places on the planet.Handrails are fitted as standard on the 950E, enabling safe and easy access to the upper structure for easy engine service and maintenance.

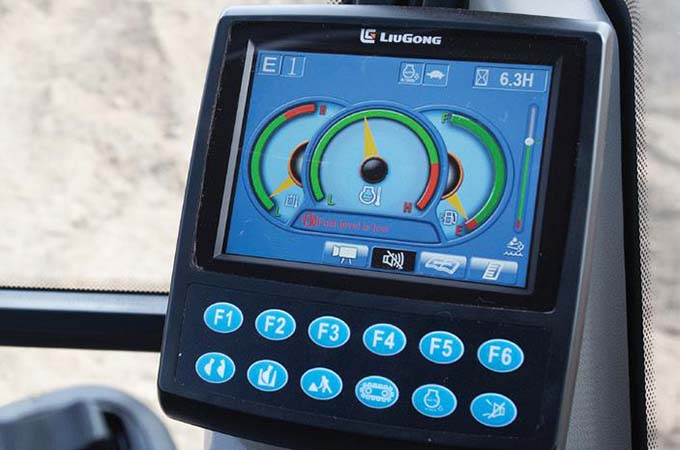

ON BOARD MONITORING

With onboard monitoring, the operator can check the machine¡¯s vital signs without leaving his seat. Using the LCD display, the operator can easily check oil temperatures and pressure levels, receive service interval alerts and access other information that contributes to simple maintenance and servicing of the machine.

SPECIFICATIONS
Base
Operating Weight 37,000 kg
Rated Power 214 kW (287 hp / 291 ps) @ 2,100 rpm
Bucket Capacity 1.9 m³
Performance
Arm Digging Force 228 kN
Bucket Digging Force 252 kN
Transport Dimension
Shipping Length 11,350 mm
Shipping Height 3,800 mm
Track Shoe Width (STD) 600 mm
Engine
Model Cummins QSL9
Emission Tier 3 / Stage IIIA
Hydraulic System
System Maximum Flow 600 L/min
System Pressure 34.3 MPa
