FEATURES
High efficiency , lower fuel consumption

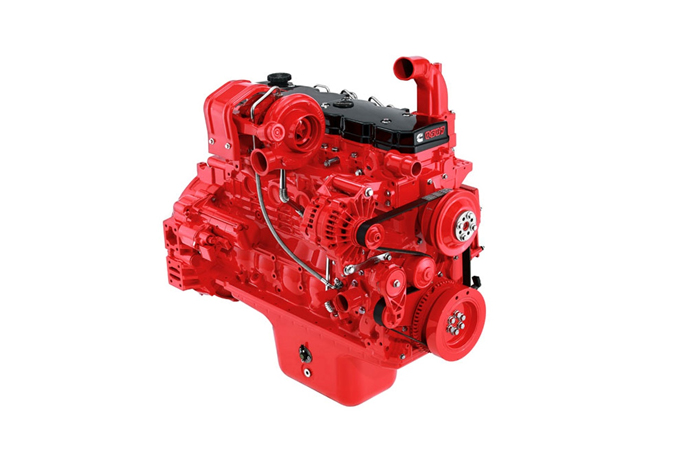

  • Installed Cummins QSB7 engine which was specially designed for LiuGong excavator, Owns reliable performance, fuel saving , Powerful motive force,20% more Torsion available.

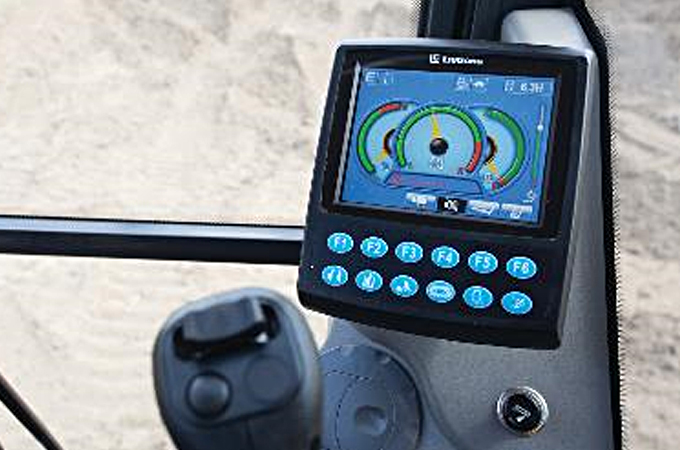

  • Automatic idling control system, decrease fuel consumption further.



  • Advanced IPC (Intelligent Power Control ) control system let the engine and Hyd. Pump matched well with best performance.

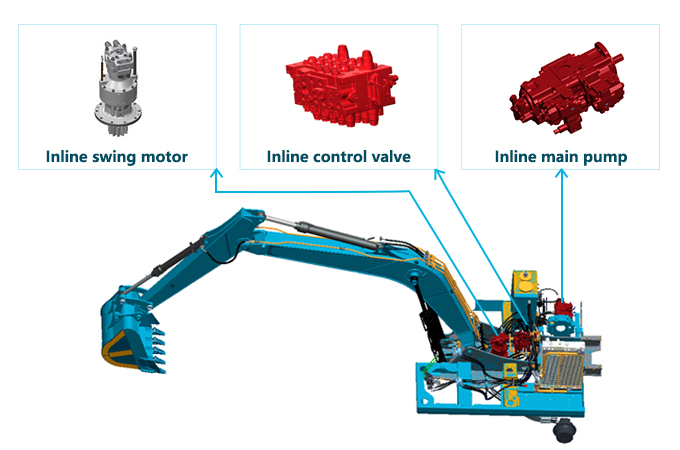

  • Inline Hyd. System , lower fuel consumption and cost, Smooth and light operation Lesser Hyd. Pressure lose , better fuel Consumption with high efficiency.
SPECIFICATIONS
Base
Operating Weight 21,500 kg
Rated Power 124 kW (166 hp / 169 ps) @ 2,050 rpm
Bucket Capacity 1.0 m³
Performance
Arm Digging Force 153 kN
Bucket Digging Force 105 kN
Transport Dimension
Shipping Length 9,540 mm
Shipping Width 2,800 mm
Shipping Height 3,040 mm
Track Shoe Width (STD) 600 mm
Engine
Model Cummins QSB7
Emission EU Stage IIIA
Hydraulic System
System Maximum Flow 448 L/min
Primary System Pressure 34 MPa
