EFFICIENCY, PRECISION & VERSATILITY

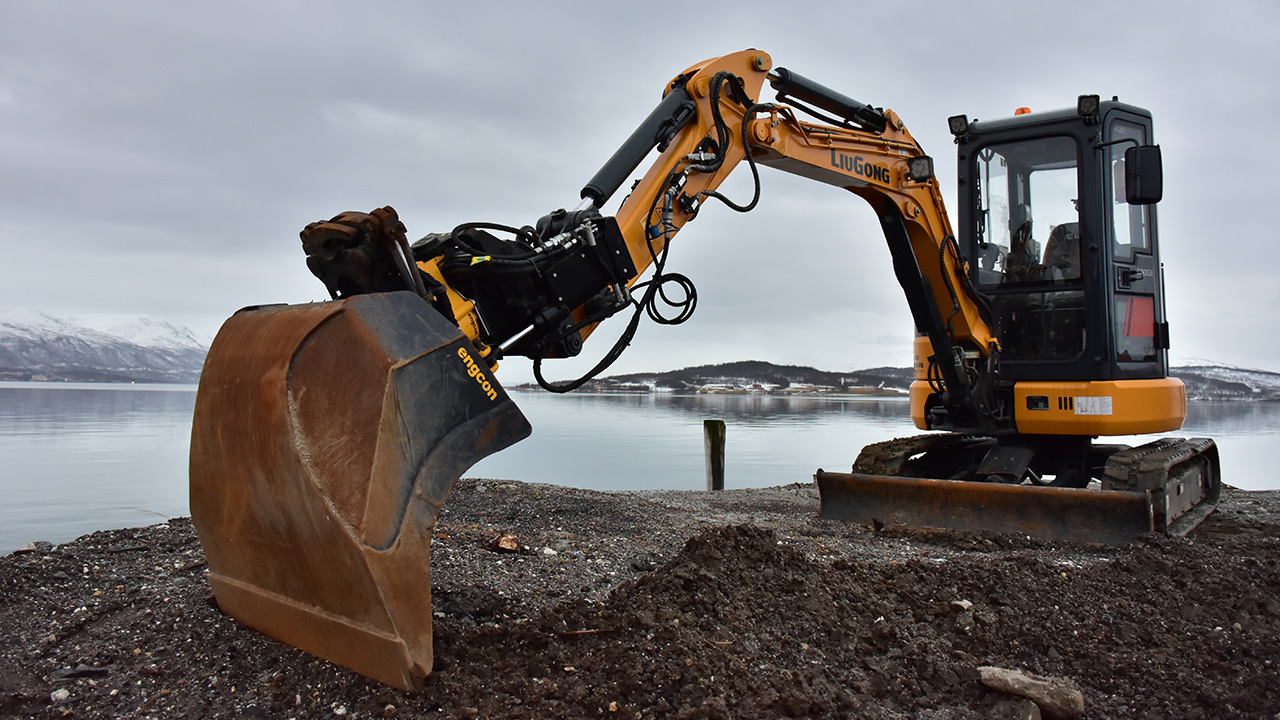

LiuGong 9035E, Zero Tail Swing excavator, designed to maximize your productivity while offering a clear line of sight within a confined work space.
LiuGong E-Series excavators deliver the perfect balance of performance, precision, and quality. The 9035E model is powered by the latest generation, low emission Yanmar 3TNV88F-BSLY engine. Our first ZTS, zero tail swing, powerful output, environmentally friendly with excellent visibility and fast cycle times.
The Yanmar fuel efficient 3TNV88F-BSLY delivers gross power of 22.2 kW (29.8 hp / 30.2 ps) and torque of 94.2 N·m (69.5 lb·ft).
Load-sensing hydraulics direct the engine’s power to ensure the hydraulic pump flow continually adjusts for smooth, quick and efficient operation. The pilot valves match up with the main control valve to offer more precise control.

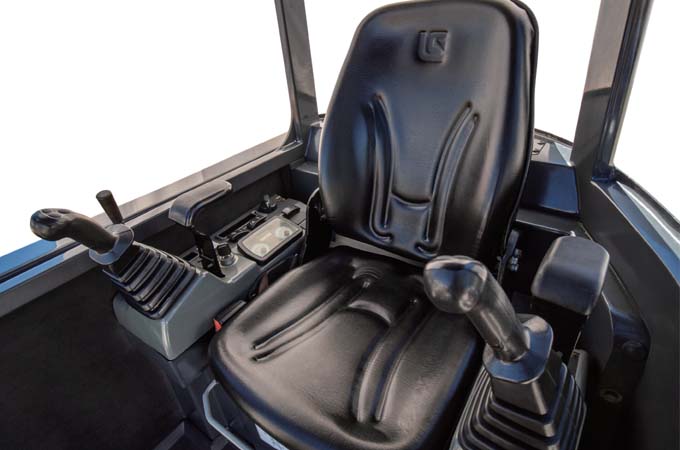

Ergonomically designed controls, large entrance, spacious interior designed for operator comfort and efficiency
| Operating Weight | 3,980/3,860 kg |
| Rated Power | 22.2 kW (29.8 hp / 30.2 ps) @ 2,400 rpm |
| Bucket Capacity | 0.11 m³ |
| Arm Digging Force | 20 kN |
| Bucket Digging Force | 30 kN |
| Shipping Length | 4,810/4,860 mm |
| Shipping Width | 1,700 mm |
| Shipping Height | 2,500 mm |
| Track Shoe Width (STD) | 300 mm |
| Model | Yanmar 3TNV88-BPLY |
| Emission | EU Stage IIIA |
| System Maximum Flow | 92.4 L/min |
| Primary System Pressure | 24.5 MPa |
